Karpenter 弹性伸缩实践

2026年4月18日

虚心学习

在 EKS 上替掉 Cluster Autoscaler，换成 Karpenter 做节点弹性伸缩。这里记录一下最小可用配置和踩过的坑。

为什么换 Karpenter

Cluster Autoscaler 要预先定义 ASG、实例规格一旦改动就得重建，扩容也慢。Karpenter 直接和 EC2 对话，Pending 出现后几十秒内就能把节点拉起来，而且可以按 Pod 的实际需求选实例规格，不用维护一堆 ASG。

总体思路

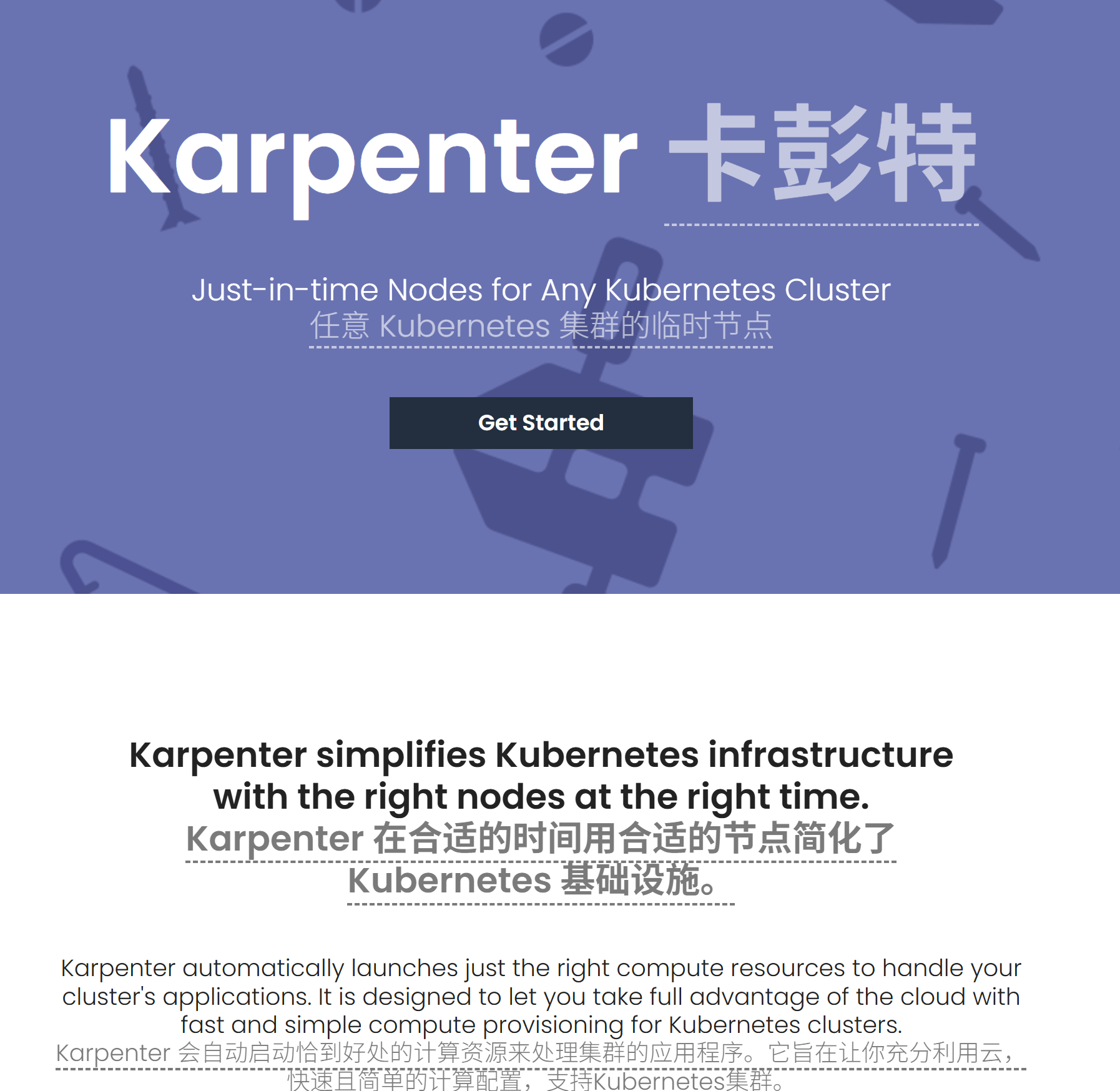

karpenter

IAM：用官方 CloudFormation 模板把 KarpenterNodeRole 和 KarpenterControllerPolicy 建好
中断事件：配 SQS + EventBridge，接收 Spot 中断、健康事件、实例状态变化
NodeClass：统一定义 AMI、EBS、子网、安全组发现方式
NodePool：两个池子，主池偏好 AMD（便宜），次池兜底

IAM & 中断队列

直接用官方的 CFN 模板部署，关键资源：

KarpenterNodeRole-<cluster>：节点 EC2 role，挂 AmazonEKS_CNI_Policy / AmazonEKSWorkerNodePolicy / AmazonEC2ContainerRegistryPullOnly / AmazonSSMManagedInstanceCore
KarpenterControllerPolicy-<cluster>：控制器用的策略，限制 RunInstances / CreateFleet 等动作必须带 kubernetes.io/cluster/<cluster>=owned 标签，避免越权
KarpenterInterruptionQueue：SQS 队列，接 4 条 EventBridge 规则
- aws.health - AWS Health Event
- aws.ec2 - EC2 Spot Instance Interruption Warning
- aws.ec2 - EC2 Instance Rebalance Recommendation
- aws.ec2 - EC2 Instance State-change Notification

子网和安全组别忘了打标签 karpenter.sh/discovery: <cluster-name>，Karpenter 就是靠这个发现网络资源的。

CloudFormation 模板 karpenter-cfn.yaml（展开查看）

karpenter-cfn.yaml
AWSTemplateFormatVersion: "2010-09-09"
Description: Resources used by https://github.com/aws/karpenter
Parameters:
  ClusterName:
    Type: String
    Description: "EKS cluster name"
Resources:
  KarpenterNodeRole:
    Type: "AWS::IAM::Role"
    Properties:
      RoleName: !Sub "KarpenterNodeRole-${ClusterName}"
      Path: /
      AssumeRolePolicyDocument:
        Version: "2012-10-17"
        Statement:
          - Effect: Allow
            Principal:
              Service: !Sub "ec2.${AWS::URLSuffix}"
            Action:
              - "sts:AssumeRole"
      ManagedPolicyArns:
        - !Sub "arn:${AWS::Partition}:iam::aws:policy/AmazonEKS_CNI_Policy"
        - !Sub "arn:${AWS::Partition}:iam::aws:policy/AmazonEKSWorkerNodePolicy"
        - !Sub "arn:${AWS::Partition}:iam::aws:policy/AmazonEC2ContainerRegistryPullOnly"
        - !Sub "arn:${AWS::Partition}:iam::aws:policy/AmazonSSMManagedInstanceCore"
  KarpenterControllerPolicy:
    Type: AWS::IAM::ManagedPolicy
    Properties:
      ManagedPolicyName: !Sub "KarpenterControllerPolicy-${ClusterName}"
      PolicyDocument: !Sub |
        {
          "Version": "2012-10-17",
          "Statement": [
            {
              "Sid": "AllowScopedEC2InstanceAccessActions",
              "Effect": "Allow",
              "Resource": [
                "arn:${AWS::Partition}:ec2:${AWS::Region}::image/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}::snapshot/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:security-group/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:subnet/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:capacity-reservation/*"
              ],
              "Action": ["ec2:RunInstances", "ec2:CreateFleet"]
            },
            {
              "Sid": "AllowScopedEC2LaunchTemplateAccessActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:ec2:${AWS::Region}:*:launch-template/*",
              "Action": ["ec2:RunInstances", "ec2:CreateFleet"],
              "Condition": {
                "StringEquals": {
                  "aws:ResourceTag/kubernetes.io/cluster/${ClusterName}": "owned"
                },
                "StringLike": {
                  "aws:ResourceTag/karpenter.sh/nodepool": "*"
                }
              }
            },
            {
              "Sid": "AllowScopedEC2InstanceActionsWithTags",
              "Effect": "Allow",
              "Resource": [
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:fleet/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:instance/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:volume/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:network-interface/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:launch-template/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:spot-instances-request/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:capacity-reservation/*"
              ],
              "Action": ["ec2:RunInstances", "ec2:CreateFleet", "ec2:CreateLaunchTemplate"],
              "Condition": {
                "StringEquals": {
                  "aws:RequestTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:RequestTag/eks:eks-cluster-name": "${ClusterName}"
                },
                "StringLike": {
                  "aws:RequestTag/karpenter.sh/nodepool": "*"
                }
              }
            },
            {
              "Sid": "AllowScopedResourceCreationTagging",
              "Effect": "Allow",
              "Resource": [
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:fleet/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:instance/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:volume/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:network-interface/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:launch-template/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:spot-instances-request/*"
              ],
              "Action": "ec2:CreateTags",
              "Condition": {
                "StringEquals": {
                  "aws:RequestTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:RequestTag/eks:eks-cluster-name": "${ClusterName}",
                  "ec2:CreateAction": ["RunInstances", "CreateFleet", "CreateLaunchTemplate"]
                },
                "StringLike": {
                  "aws:RequestTag/karpenter.sh/nodepool": "*"
                }
              }
            },
            {
              "Sid": "AllowScopedResourceTagging",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:ec2:${AWS::Region}:*:instance/*",
              "Action": "ec2:CreateTags",
              "Condition": {
                "StringEquals": {
                  "aws:ResourceTag/kubernetes.io/cluster/${ClusterName}": "owned"
                },
                "StringLike": {
                  "aws:ResourceTag/karpenter.sh/nodepool": "*"
                },
                "StringEqualsIfExists": {
                  "aws:RequestTag/eks:eks-cluster-name": "${ClusterName}"
                },
                "ForAllValues:StringEquals": {
                  "aws:TagKeys": ["eks:eks-cluster-name", "karpenter.sh/nodeclaim", "Name"]
                }
              }
            },
            {
              "Sid": "AllowScopedDeletion",
              "Effect": "Allow",
              "Resource": [
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:instance/*",
                "arn:${AWS::Partition}:ec2:${AWS::Region}:*:launch-template/*"
              ],
              "Action": ["ec2:TerminateInstances", "ec2:DeleteLaunchTemplate"],
              "Condition": {
                "StringEquals": {
                  "aws:ResourceTag/kubernetes.io/cluster/${ClusterName}": "owned"
                },
                "StringLike": {
                  "aws:ResourceTag/karpenter.sh/nodepool": "*"
                }
              }
            },
            {
              "Sid": "AllowRegionalReadActions",
              "Effect": "Allow",
              "Resource": "*",
              "Action": [
                "ec2:DescribeCapacityReservations",
                "ec2:DescribeImages",
                "ec2:DescribeInstances",
                "ec2:DescribeInstanceTypeOfferings",
                "ec2:DescribeInstanceTypes",
                "ec2:DescribeLaunchTemplates",
                "ec2:DescribeSecurityGroups",
                "ec2:DescribeSpotPriceHistory",
                "ec2:DescribeSubnets"
              ],
              "Condition": {
                "StringEquals": {
                  "aws:RequestedRegion": "${AWS::Region}"
                }
              }
            },
            {
              "Sid": "AllowSSMReadActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:ssm:${AWS::Region}::parameter/aws/service/*",
              "Action": "ssm:GetParameter"
            },
            {
              "Sid": "AllowPricingReadActions",
              "Effect": "Allow",
              "Resource": "*",
              "Action": "pricing:GetProducts"
            },
            {
              "Sid": "AllowInterruptionQueueActions",
              "Effect": "Allow",
              "Resource": "${KarpenterInterruptionQueue.Arn}",
              "Action": ["sqs:DeleteMessage", "sqs:GetQueueUrl", "sqs:ReceiveMessage"]
            },
            {
              "Sid": "AllowPassingInstanceRole",
              "Effect": "Allow",
              "Resource": "${KarpenterNodeRole.Arn}",
              "Action": "iam:PassRole",
              "Condition": {
                "StringEquals": {
                  "iam:PassedToService": ["ec2.amazonaws.com", "ec2.amazonaws.com.cn"]
                }
              }
            },
            {
              "Sid": "AllowScopedInstanceProfileCreationActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:iam::${AWS::AccountId}:instance-profile/*",
              "Action": ["iam:CreateInstanceProfile"],
              "Condition": {
                "StringEquals": {
                  "aws:RequestTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:RequestTag/eks:eks-cluster-name": "${ClusterName}",
                  "aws:RequestTag/topology.kubernetes.io/region": "${AWS::Region}"
                },
                "StringLike": {
                  "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
              }
            },
            {
              "Sid": "AllowScopedInstanceProfileTagActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:iam::${AWS::AccountId}:instance-profile/*",
              "Action": ["iam:TagInstanceProfile"],
              "Condition": {
                "StringEquals": {
                  "aws:ResourceTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:ResourceTag/topology.kubernetes.io/region": "${AWS::Region}",
                  "aws:RequestTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:RequestTag/eks:eks-cluster-name": "${ClusterName}",
                  "aws:RequestTag/topology.kubernetes.io/region": "${AWS::Region}"
                },
                "StringLike": {
                  "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*",
                  "aws:RequestTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
              }
            },
            {
              "Sid": "AllowScopedInstanceProfileActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:iam::${AWS::AccountId}:instance-profile/*",
              "Action": [
                "iam:AddRoleToInstanceProfile",
                "iam:RemoveRoleFromInstanceProfile",
                "iam:DeleteInstanceProfile"
              ],
              "Condition": {
                "StringEquals": {
                  "aws:ResourceTag/kubernetes.io/cluster/${ClusterName}": "owned",
                  "aws:ResourceTag/topology.kubernetes.io/region": "${AWS::Region}"
                },
                "StringLike": {
                  "aws:ResourceTag/karpenter.k8s.aws/ec2nodeclass": "*"
                }
              }
            },
            {
              "Sid": "AllowInstanceProfileReadActions",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:iam::${AWS::AccountId}:instance-profile/*",
              "Action": "iam:GetInstanceProfile"
            },
            {
              "Sid": "AllowUnscopedInstanceProfileListAction",
              "Effect": "Allow",
              "Resource": "*",
              "Action": "iam:ListInstanceProfiles"
            },
            {
              "Sid": "AllowAPIServerEndpointDiscovery",
              "Effect": "Allow",
              "Resource": "arn:${AWS::Partition}:eks:${AWS::Region}:${AWS::AccountId}:cluster/${ClusterName}",
              "Action": "eks:DescribeCluster"
            }
          ]
        }
  KarpenterInterruptionQueue:
    Type: AWS::SQS::Queue
    Properties:
      QueueName: !Sub "${ClusterName}"
      MessageRetentionPeriod: 300
      SqsManagedSseEnabled: true
  KarpenterInterruptionQueuePolicy:
    Type: AWS::SQS::QueuePolicy
    Properties:
      Queues:
        - !Ref KarpenterInterruptionQueue
      PolicyDocument:
        Id: EC2InterruptionPolicy
        Statement:
          - Effect: Allow
            Principal:
              Service:
                - events.amazonaws.com
                - sqs.amazonaws.com
            Action: sqs:SendMessage
            Resource: !GetAtt KarpenterInterruptionQueue.Arn
          - Sid: DenyHTTP
            Effect: Deny
            Action: sqs:*
            Resource: !GetAtt KarpenterInterruptionQueue.Arn
            Condition:
              Bool:
                aws:SecureTransport: false
            Principal: "*"
  ScheduledChangeRule:
    Type: 'AWS::Events::Rule'
    Properties:
      EventPattern:
        source: [aws.health]
        detail-type: [AWS Health Event]
      Targets:
        - Id: KarpenterInterruptionQueueTarget
          Arn: !GetAtt KarpenterInterruptionQueue.Arn
  SpotInterruptionRule:
    Type: 'AWS::Events::Rule'
    Properties:
      EventPattern:
        source: [aws.ec2]
        detail-type: [EC2 Spot Instance Interruption Warning]
      Targets:
        - Id: KarpenterInterruptionQueueTarget
          Arn: !GetAtt KarpenterInterruptionQueue.Arn
  RebalanceRule:
    Type: 'AWS::Events::Rule'
    Properties:
      EventPattern:
        source: [aws.ec2]
        detail-type: [EC2 Instance Rebalance Recommendation]
      Targets:
        - Id: KarpenterInterruptionQueueTarget
          Arn: !GetAtt KarpenterInterruptionQueue.Arn
  InstanceStateChangeRule:
    Type: 'AWS::Events::Rule'
    Properties:
      EventPattern:
        source: [aws.ec2]
        detail-type: [EC2 Instance State-change Notification]
      Targets:
        - Id: KarpenterInterruptionQueueTarget
          Arn: !GetAtt KarpenterInterruptionQueue.Arn

EC2NodeClass

几个要点：

AMI 锁版本：al2023@v20260304 显式固定版本号，避免新 AMI 发布时自动滚升级触发意外
EBS 加密 + gp3 50G，按需再调
子网/安全组靠 tag 发现，多 AZ 自然覆盖

ec2-node-class-default.yaml（展开查看）

ec2-node-class-default.yaml
apiVersion: karpenter.k8s.aws/v1
kind: EC2NodeClass
metadata:
  name: default
spec:
  role: "KarpenterNodeRole-<cluster-name>"
  amiSelectorTerms:
    - alias: "al2023@v20260304"
  blockDeviceMappings:
    - deviceName: /dev/xvda
      ebs:
        volumeSize: 50Gi
        volumeType: gp3
        encrypted: true
        deleteOnTermination: true
  subnetSelectorTerms:
    - tags:
        karpenter.sh/discovery: "<cluster-name>"
  securityGroupSelectorTerms:
    - tags:
        karpenter.sh/discovery: "<cluster-name>"

NodePool：主池 + 兜底池

两个池子，用 weight 控制优先级。主池 weight=100 偏好 AMD；兜底池 weight=10，不锁 CPU 厂商。

为什么这么分？

AMD 优先：c/m 系列的 AMD 实例（c6a、m6a 等）比 Intel 版本便宜约 10%，性能差距可忽略
兜底池：AMD 某些区域会抢不到容量，兜底池放开 CPU 厂商限制
CPU 范围锁 8~64 核：太小的节点碎片多，太大的节点故障爆炸半径大
只用 c / m 系列：不要 t 系列（突发性能不稳定）、不要 r / x 系列（内存太多浪费）
仅第 6、7 代：老代际性价比差
expireAfter: 720h：30 天强制重建，保证节点定期滚更新
consolidateAfter: 10m：利用率低的节点 10 分钟后被合并，避免频繁抖动

node-pool-default-amd.yaml（展开查看）

node-pool-default-amd.yaml
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default-amd
spec:
  weight: 100
  template:
    metadata:
      labels:
        nodepool: default-amd
        capacity-profile: elastic
        cpu-preference: amd
    spec:
      requirements:
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: karpenter.k8s.aws/instance-category
          operator: In
          values: ["c", "m"]
        - key: karpenter.k8s.aws/instance-cpu
          operator: In
          values: ["8", "16", "32", "64"]
        - key: karpenter.k8s.aws/instance-cpu-manufacturer
          operator: In
          values: ["amd"]
        - key: karpenter.k8s.aws/instance-generation
          operator: In
          values: ["6", "7"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default
      expireAfter: 720h
  limits:
    cpu: 800
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 10m

node-pool-default-fallback.yaml（展开查看）

node-pool-default-fallback.yaml
apiVersion: karpenter.sh/v1
kind: NodePool
metadata:
  name: default-fallback
spec:
  weight: 10
  template:
    metadata:
      labels:
        nodepool: default-fallback
        capacity-profile: elastic
        cpu-preference: generic
    spec:
      requirements:
        - key: kubernetes.io/arch
          operator: In
          values: ["amd64"]
        - key: kubernetes.io/os
          operator: In
          values: ["linux"]
        - key: karpenter.sh/capacity-type
          operator: In
          values: ["on-demand"]
        - key: karpenter.k8s.aws/instance-category
          operator: In
          values: ["c", "m"]
        - key: karpenter.k8s.aws/instance-cpu
          operator: In
          values: ["8", "16", "32", "64"]
        - key: karpenter.k8s.aws/instance-generation
          operator: In
          values: ["6", "7"]
      nodeClassRef:
        group: karpenter.k8s.aws
        kind: EC2NodeClass
        name: default
      expireAfter: 720h
  limits:
    cpu: 200
  disruption:
    consolidationPolicy: WhenEmptyOrUnderutilized
    consolidateAfter: 10m

用 Kustomize 组织

一键 kubectl apply -k . 下发：

kustomization.yaml（展开查看）

kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - node-pool-default-amd.yaml
  - node-pool-default-fallback.yaml
  - ec2-node-class-default.yaml

验证弹性伸缩

用一个能撑起节点的 Deployment 验证。pause 容器不跑任何逻辑，只申请资源：

test.yaml（展开查看）

test.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: test-karpenter
  namespace: default
spec:
  replicas: 10
  selector:
    matchLabels:
      app: inflate
  template:
    metadata:
      labels:
        app: inflate
    spec:
      terminationGracePeriodSeconds: 0
      containers:
        - name: inflate
          image: public.ecr.aws/eks-distro/kubernetes/pause:3.7
          resources:
            requests:
              cpu: "2"
              memory: "4Gi"

扩容过程看日志：

kubectl logs -n kube-system -l app.kubernetes.io/name=karpenter -f

看到 Created nodeclaim → Registered node → Pod 调度，整个过程通常 40~60 秒。

扩完再缩：

kubectl scale deployment test-karpenter --replicas=0

10 分钟左右（consolidateAfter）节点被合并释放。

踩过的坑

1. 子网/安全组没打标签

Karpenter Pending 半天不动，日志报找不到子网。kubectl describe ec2nodeclass default 里 status 里子网列表是空的，补上 karpenter.sh/discovery tag 立刻恢复。

2. AMI alias 不写版本号

最开始写 alias: al2023@latest，节点 expireAfter 到期自动用新 AMI 重建，结果新 AMI 跟某个 DaemonSet 冲突，一波节点挂了。改成固定版本号后只在可控窗口手动升级。

3. NodePool CPU limits 设太低

业务突然起量时，NodePool 达到 limits.cpu 上限就不再扩。主池撞墙后靠兜底池顶上，所以两个池子的 limits 要结合业务峰值评估。

4. Spot 中断没接 SQS

早期没配中断队列，Spot 实例被回收时节点上 Pod 直接被 kill，没有优雅驱逐。配上 SQS + EventBridge 后，Karpenter 收到中断 2 分钟预警就开始预扩节点 + cordon 旧节点 + 迁移 Pod。

5. t 系列 burstable 实例别选

一开始贪便宜把 t 系列加进 requirements，结果跑 CI 任务 CPU credit 打完后节点直接假死。换成 c/m 系列稳定得多。

回滚

如果 Karpenter 出问题要回到 CA：

# 1. 先把 NodePool 删掉，阻止新节点被创建
kubectl delete nodepool --all

# 2. 等 Karpenter 管理的节点上 Pod 迁移或驱逐
# 可以人工 cordon + drain 加速

# 3. 卸载 Karpenter
helm uninstall karpenter -n kube-system

# 4. 恢复 CA 配置

CFN 栈和 IAM role 可以保留，不影响其他东西。

为什么换 Karpenter​

总体思路​

IAM & 中断队列​

EC2NodeClass​

NodePool：主池 + 兜底池​

用 Kustomize 组织​

验证弹性伸缩​

踩过的坑​

回滚​

参考​
